How a Coil Winding Machine Works
At its core, a coil winding machine is designed to wind wire into precise coils for transformers, motors, inductors, and other electronic components. It places wire evenly around a bobbin or core while maintaining controlled tension, ensuring stable performance and long-term reliability.
Accurate winding helps reduce electrical losses, improve coil consistency, and enhance product quality. Today, different types of coil winding machines are available to meet various coil shapes, materials, and manufacturing requirements.
Types of Coil Winding Machines
Flyer winders – A wire guide rotates around a fixed bobbin to create precise coil winding. They are widely used for motor and transformer winding.
Lathe (shaft) winders – The bobbin rotates while the wire guide moves back and forth to build even coil layers. They are ideal for standard cylindrical coils.
Toroidal winders – A wire shuttle passes through ring-shaped cores. reating accurate windings for toroidal transformers and inductors. They are ideal for compact, high-efficiency designs.
Traverse winders – A precision wire guide controls wire placement across the core. They are commonly used for fine wire winding and orthocyclic winding with a high fill factor.
These coil winding machine types form the foundation of modern coil winding technology. Their continued development has led to today’s CNC and programmable systems，, delivering higher precision, better efficiency, and more flexible production.
From Manual Winding to Flyer Winders
The earliest coil winding machines were simple and mostly manual. Operators guided the wire by hand while turning the bobbin with a crank or basic motor. Some machines included mechanical turn counters, but winding accuracy still relied on the operator’s skill and experience.
Flyer winders were an early step toward automated coil winding. Instead of rotating the bobbin, the wire guide (flyer) moved around a fixed core, making winding faster and more consistent for transformers and motor coils. However, the process still depended on operator skill, so winding accuracy could vary.
Although these early coil winding methods were a major step forward, they still had several limitations:
Low precision – Uneven wire layering often reduced coil performance and consistency
Operator-dependent quality – Coil quality relied on operator skill, making consistent production difficult.
Low productivity – Manual wire guiding limited production speed and was unsuitable for large-scale manufacturing.
As a result, these challenges drove the development of more accurate coil winding machines. This led to semi-automatic systems and later CNC-controlled machines, delivering higher precision and better production efficiency.
Programmable Winding (1970s–1990s)
By the late 20th century, coil winding technology advanced rapidly with stepper motors, PLCs, and early microcontrollers. These innovations allowed winding recipes to store settings such as turns, pitch, dwell, and traverse patterns, making coil winding more accurate and automated. This progress also paved the way for semi-automatic and later CNC-controlled machines.
With these improvements, coil winding machines could repeat the same winding cycle with greater consistency instead of relying only on operator skill. Electronic tensioners replaced traditional friction pads, providing better wire tension control. This change improved productivity, produced more consistent coils, and reduced material waste compared with manual or flyer winding methods.
The CNC Era (2000s–Present)
In the 2000s, CNC (Computer Numerical Control) brought a major upgrade to coil winding.Multi-axis servo drives synchronized the spindle, traverse, and payoff units for precise wire placement. This enabled orthocyclic winding with minimal gaps, helping produce compact, high-density coils with greater accuracy and consistency.
As technology advanced, this level of CNC control made it possible to produce multi-section coils, toroidal coils, and other specialty windings that were once difficult to manufacture. It also increased production efficiency, reduced scrap, and delivered excellent repeatability, making CNC coil winding machines the preferred choice for EV motors, aerospace, and medical electronics.
Evolution of Wire Tension Control
Wire tension control became more advanced as coil winding machines improved. Early machines used friction pads or dancer arms, but these systems could easily lose accuracy over time. Modern machines use load-cell closed-loop feedback to monitor wire tension in real time and automatically adjust braking or feed torque for more stable, consistent winding.
With these refined tension features, advanced wire tension control provides better wire protection, higher coil density, and consistent repeatability in every production run. Combined with CNC precision, it helps produce coils that are more durable and electrically efficient.
Toroidal Winding Technology

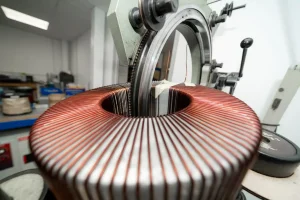

JG 6504 Desktop Toroidal Transformer Winding Machine
As coil technology advanced, toroidal winding machines were developed for ring-shaped cores that traditional flyer or lathe winders could not handle. Early machines used shuttle systems to feed the wire through the core. This method worked well but offered relatively slow winding speed.
Over time, toroidal winding machines evolved into programmable and CNC-controlled systems, offering more accurate pitch control, automatic taping, and higher production speed. Today, they are widely used in transformers, EV power systems, audio equipment, and medical devices, where compact, low-noise coils are essential.
Industry 4.0 Integration
Building on these advances, the latest coil winding machines have entered the Industry 4.0 era with smarter production features, including:
MES connectivity for seamless factory integration
Digital recipe management and production logs for consistent coil winding
Remote monitoring and diagnostics to reduce downtime and improve efficiency
Real-time analytics help operators detect defects early and adjust machine settings quickly. This improves production yield, supports full production traceability, and keeps coil winding more consistent.
Future Outlook
Looking ahead, coil winding machines will become smarter, faster, and more sustainable with technologies such as:
AI vision systems to predict and prevent defects before they occur.
Digital twins to simulate coil winding patterns, speed up setup, and reduce trial runs.
Cobots (collaborative robots) to automate loading and unloading for higher productivity.
Energy-efficient drives and lower scrap to reduce waste and improve energy efficiency.
These innovations will help coil winding machines meet the growing needs of modern industries, including renewable energy, electric vehicles (EVs), and advanced manufacturing.
Ready to Upgrade Your Coil Winding?
The development of coil winding machines has transformed the industry, from manual flyer winders to CNC and Industry 4.0 systems. Whether you need higher winding accuracy, greater productivity, or smarter automation, choosing the right coil winding machine can make a big difference.
Contact us today today for expert advice, reliable coil winding machine solutions, and options tailored to your manufacturing needs. Let’s improve production efficiency, reduce scrap, and build a smarter, more reliable production line together.
